How FloraPulse Works

FloraPulse is built on a single core innovation: a microtensiometer small enough to embed directly inside a living tree trunk. It continuously measures water tension in the xylem — the plant’s vascular highway — giving growers a direct, real-time reading of how their trees or vines experience water availability. Readings update every 20 minutes with zero manual labor.

The Science of Stem Water Potential

Stem water potential (SWP) is the gold standard for plant water status, used by irrigation scientists for over 50 years. It measures the tension (negative pressure) of water inside the xylem vessels — the internal plumbing that moves water from roots to leaves.

When a tree has plenty of water, xylem tension is low (e.g., −3 to −6 bar). As the soil dries or atmospheric demand increases, the tree pulls harder and tension rises (e.g., −10 to −20 bar). This single measurement captures the plant’s integrated response to soil moisture, root health, atmospheric demand (VPD), salinity, and canopy size.

Unlike soil moisture sensors that measure water in the ground, or weather stations that measure atmospheric demand, SWP tells you what the plant itself is experiencing. It’s the difference between checking your car’s fuel gauge versus measuring how much gas is at the station down the road.

Microtensiometer Technology

The FloraPulse microtensiometer was developed through over a decade of research at Cornell University by Dr. Alan Lakso and Dr. Abe Stroock. The sensor applies a principle used in soil science for over a century — tensiometry — miniaturized to work inside living plant tissue.

At its core, a nanoporous ceramic tip connects to a pressure transducer. When embedded in the trunk, the porous tip equilibrates with xylem water. As tree water tension changes throughout the day, the sensor tracks those changes in real time. The key breakthrough was creating a porous material robust enough to withstand extreme negative pressures (down to −25 bar or more) without cavitating — a problem that had blocked previous attempts at in-plant tensiometry.

The result is a sensor roughly the size of a small nail that delivers laboratory-grade water potential measurements continuously, in the field, across entire growing seasons. See how this compares to the traditional method: FloraPulse vs. the pressure chamber.

From Sensor to Dashboard

The path from raw sensor reading to actionable irrigation guidance:

1. Sensor reads water potential: The microtensiometer in the trunk measures xylem tension every few minutes.
2. Wireless transmission: A small solar-powered transmitter (“mote”) on the tree sends data via cellular connection to the cloud.
3. Cloud processing: Data flows through the Ubidots IoT platform, then syncs to the FloraPulse database every 20 minutes. Health algorithms automatically validate data quality, detect sensor issues, and calculate crop-specific stress levels.
4. Dashboard delivery: Growers access data through the FloraPulse web dashboard on any device. The dashboard shows current stress levels, historical trends, irrigation recommendations, and weather context.
5. Alerts and notifications: When stress exceeds crop-specific thresholds for consecutive days, automated email and SMS alerts notify growers before crop damage occurs.

The entire process is automatic. Once installed, the grower never needs to visit the tree to collect data — it flows continuously to their dashboard.

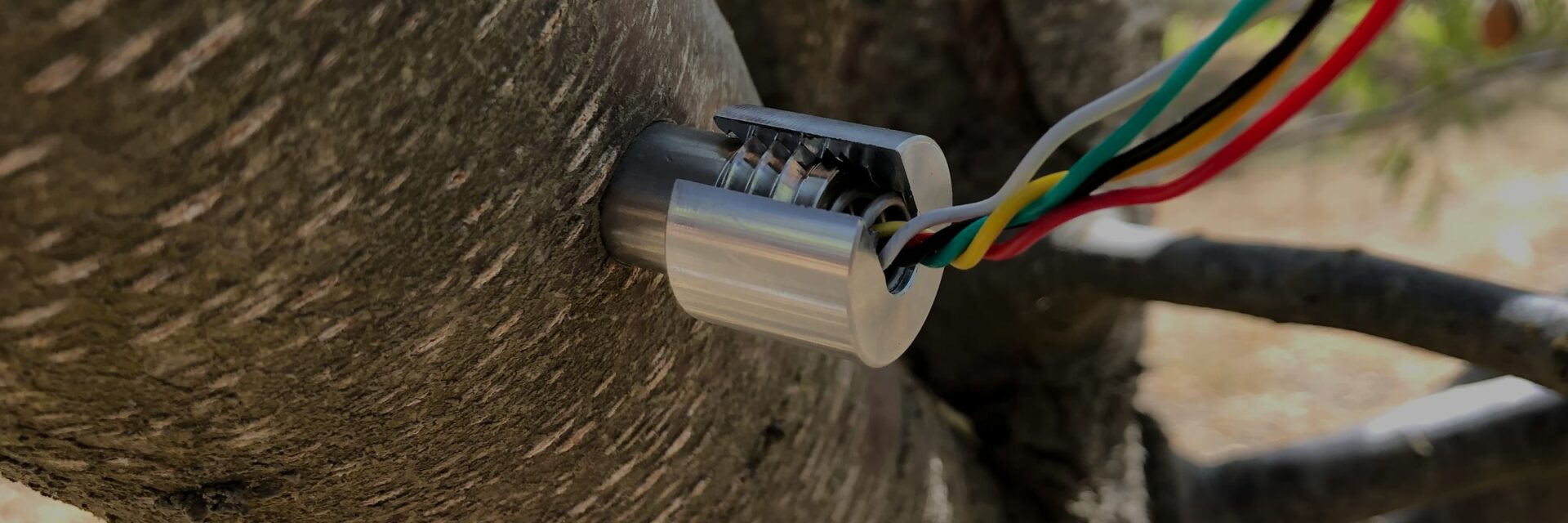

Installation

FloraPulse sensors are installed by our trained field team, typically in late winter or early spring before the growing season. The process takes about 30 minutes per tree:

• A small hole (a few millimeters in diameter) is drilled into the trunk at a standardized height and orientation.
• The microtensiometer is carefully inserted and sealed to ensure contact with xylem tissue.
• The wireless transmitter is mounted on the tree and connected to the sensor.
• The system is powered on and verified to be transmitting data.

The installation does not damage the tree. Trees naturally compartmentalize small wounds — the same biological process that lets them survive pruning cuts, woodpecker holes, and bark beetle damage. Multi-year studies show no negative effects on tree health or productivity.

Scientific Validation

FloraPulse technology has been validated in over 40 peer-reviewed publications from leading agricultural research institutions:

• Cornell University — where the microtensiometer was originally developed
• University of California, Davis — extensive field trials in almonds, walnuts, and wine grapes
• Washington State University — cherry and apple validation studies
• USDA Agricultural Research Service — multi-crop water stress research

These studies consistently show strong correlation between FloraPulse readings and traditional pressure chamber measurements, with the added benefit of continuous data and zero labor. Compared to other sensor approaches like dendrometers, the microtensiometer provides a direct physiological measurement rather than a proxy.

Supported Crops

FloraPulse has validated stress thresholds, growth stage guidance, and baseline equations for 10 tree and vine crops:

• Almonds
• Apples
• Cherries
• Olives
• Peaches
• Pears
• Prunes
• Table Grapes
• Wine Grapes (Red)
• Wine Grapes (White)

Each crop has specific stress band thresholds, growth-stage-aware irrigation triggers, and baseline equations calibrated from published research and field data.

Frequently Asked Questions

How long does a FloraPulse sensor last?

Each sensor is designed for a single growing season (typically March through October in the Northern Hemisphere). Our field team installs fresh sensors before each season and removes them afterward. The solar-powered wireless transmitter is reusable across multiple seasons.

How is the sensor installed?

Our trained technicians drill a small hole (a few millimeters wide) into the trunk and insert the microtensiometer so it contacts the xylem tissue. The process takes about 30 minutes per tree and does not harm the tree — similar to how trees naturally heal from pruning cuts.

What does stem water potential actually measure?

Stem water potential measures the tension (negative pressure) of water inside the plant’s xylem. It reflects everything affecting the tree’s water status — soil moisture, root health, atmospheric demand, and canopy load — in a single number. A well-watered almond tree might read −4 bar at midday, while a stressed tree could reach −14 bar or beyond.

How often does FloraPulse take readings?

The sensor takes continuous measurements, and data syncs to the cloud every 20 minutes. The dashboard highlights the midday reading (the daily stress peak) for irrigation decisions, while the full 24-hour trace is available for detailed analysis.
